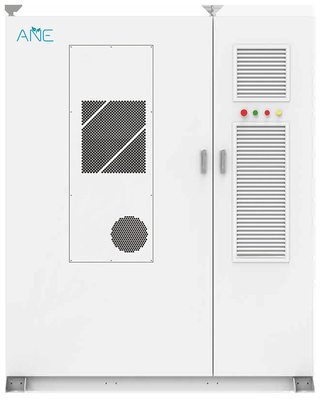

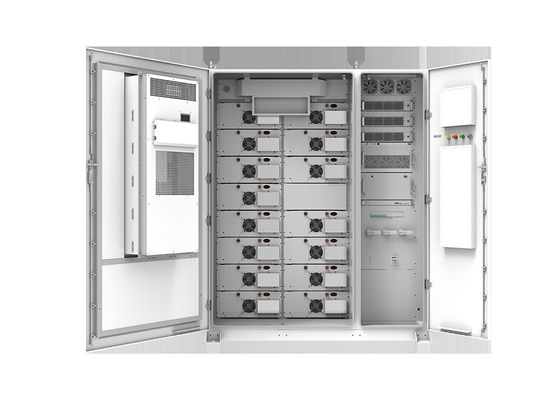

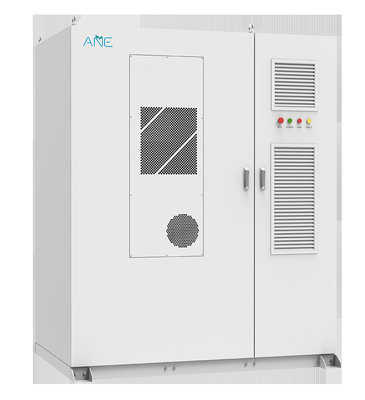

100 kW PCS 215 kWh Battery All-in-One Integrated Energy Storage System Design Inside The Cabinet

100 kW PCS 215 kWh Battery All-in-One Integrated Energy Storage System Design Inside The Cabinet
100 kW PCS 215 kWh Battery All-in-One Integrated Energy Storage System Design Inside The Cabinet 100 kW PCS 215 kWh Battery All-in-One Integrated Energy Storage System Design Inside The Cabinet 100 kW PCS 215 kWh Battery All-in-One Integrated Energy Storage System Design Inside The Cabinet

Large Image :  100 kW PCS 215 kWh Battery All-in-One Integrated Energy Storage System Design Inside The Cabinet

Product Details:
Place of Origin: China
Brand Name: ANE
Certification: CE
Model Number: DH200F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 50,000~100,000 USD
Packaging Details: Wooden Box
Delivery Time: 45 work days
Payment Terms: T/T,
Supply Ability: 200 per month
Contact Now
Detailed Product Description
PCS Power: 100 KW Battery System: 215 KWh
AC Nominal Voltage: 400V Nominal Frequency: 50Hz
AC Maximum Current: 158A Battery Voltage Range: 672-864V
Nominal Current: 140A(0.5C) MPPT Voltage Range: 200-670V
MPPT Channels: Up To Three
Highlight:

Microgrid Energy Storage Solution

,

Energy Storage Solution Photovoltaic

,

Electric Vehicle Microgrid Power System

100 kW PCS + 215 kWh Battery All-in-One Integrated Energy Storage System

All-in-One integrated system design inside the Cabinet to fulill Commercial & Industrial scenarios.



HIGHTLIGHTS
• Overall Solar+Storage Solution
• Convenient Ouldoor Setup
• All in One Design Concept
• Allow Flexible System Design
• High-level Safety Design
• Capacity Extenable to MegaWatts



DH200F (Battery Cabinet)
　
BATTERY PARAMETERS
Cell Capacity 280Ah
Battery Voltage Range 672-864V
Nominal Current 140A(0.5C)
System Storage Power 215kWh
AC PARAMETERS (ON-GRID)
Nominal Power 100kW
AC Nominal Voltage 400V
Wiring 3P4L+PE
Nominal Frequency 50Hz
AC Maximum Current 158A
AC PARAMETERS (OFF-GRID)
Nominal Power 100kW
AC Nominal Voltagg 400V
Wiring 3P4L+PE
Nominal Frequency 50Hz
AC Maximum Current 158A
Unbalanced Load Capadty 100%
PHOTOVOLTAIC INPUT
MPPT Voltage Range 200-670V
MPPT channels Up to three
Input Power Single channel 50kW
SYSTEM SPECIFICATIONS
Dimensions (W*D*H) 1.85m*1.2m*2.25m
Weight (Kg) ≈≈≥3300kg
System Round-trip Efficiency 91%(TBD)
Operation Temperature -20-55'℃
Operation Humidity 0-95%
Protection Level IP55
Anti-corrosion Level C4
Noise Level ≤75dB
Altitude ≤3000m
Cooling System Air-conditioning, Fan Coollng
Communlcation Ethernet/RS485/CAN/USB
Certification CE/CQC
　



100 kW PCS 215 kWh Battery All-in-One Integrated Energy Storage System Design Inside The Cabinet 0
